Max Fan

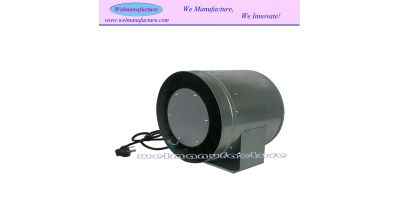

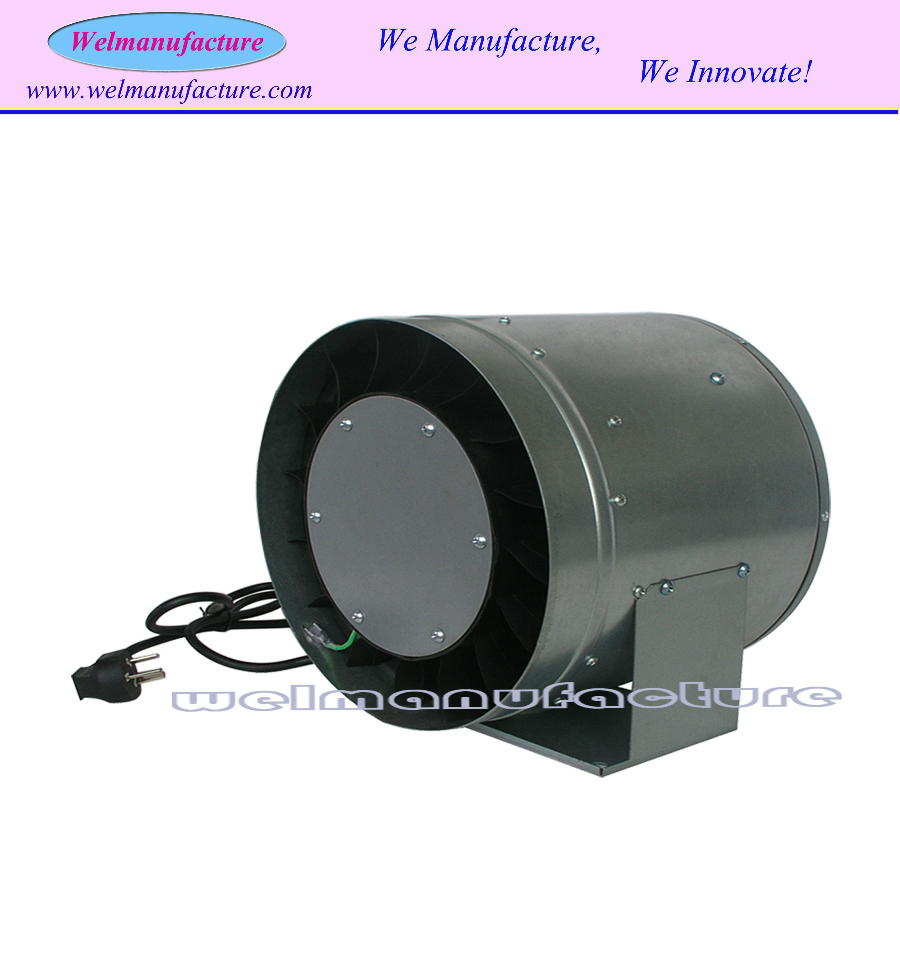

Max Fan 10"
Size: 10inch
| Item NO. | Flange Size (inch/mm) |
Speed (rpm) |
Voltage/Frequency (v/Hz) |
Pressure (Pa) |
Output (W) |
Noise dB(A) |
Airflow (CFM) |
Weight (kg/Ib） |
| MF6EU | 6in/150mm | 3000 | 220v/50Hz | 360 | 120 | 59 | 470 | 3.5/7.7 |
| MF8EU | 8in/200mm | 2900 | 220v/50Hz | 366 | 120 | 63 | 647 | 4/8.8 |
| MF10EU | 10in/250mm | 2800 | 220v/50Hz | 354 | 153 | 69 | 1000 | 6/13 |
| MF12EU | 12in/300mm | 2900 | 220v/50Hz | 665 | 334 | 73 | 1647 | 10.8/23.76 |
| MF14EU | 14in/360mm | 2800 | 220v/50Hz | 695 | 340 | 75 | 1706 | 15/33 |
| MF6US | 6in/150mm | 3350 | 120v/60Hz | 360 | 120 | 59 | 470 | 3.5/7.7 |
| MF8US | 8in/200mm | 3370 | 120v/60Hz | 366 | 120 | 63 | 650 | 4/8.8 |
| MF10US | 10in/250mm | 3030 | 120v/60Hz | 354 | 200 | 69 | 1100 | 6/13 |
| MF12US | 12in/300mm | 3340 | 120v/60Hz | 665 | 417 | 73 | 1700 | 10.8/23.76 |
| MF14US | 14in/360mm | 2800 | 120v/60Hz | 695 | 240 | 75 | 1710 | 15/33 |
- The heavy duty max air fan designed with mixed blade to move air quickly and efficiently
- More powerful but quiet operation
- Comes with prewired power cord
- Comes with easy mounting bracket
- Compact and lightweight
- The efficiency of the fan will also decrease power consumption and reduce power bills
